Flex-X 6 Compacted Wire Rope

Flex-X 6 Compacted Wire Rope

0.00
  • Superior performance 6-strand rope

  • Increased service life

  • Less sheave and drum wear

Add To Cart

Flex-X 6 users receive superior performance and increased service life in many applications compared to the ropes they had previously employed. When compared to conventional six strand ropes, Flex-X 6 ropes provide greater surface area and more steel per given diameter. This increases rope stability and strength. This results in a longer service life and less sheave and drum wear.

Flex-X® vs. standard rope of similar construction:

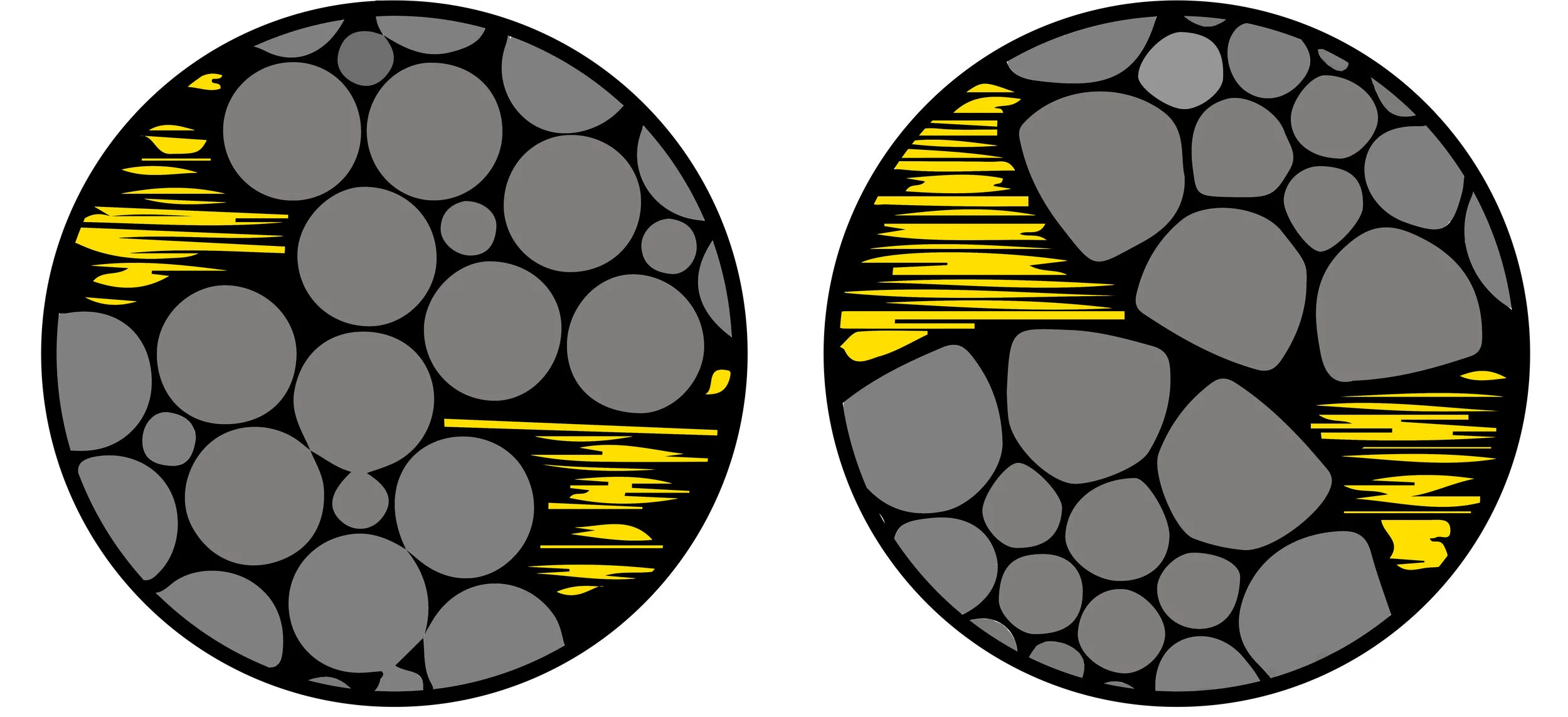

Flex-X designs reduce drum scrubbing between the lead line and the previous wrap.   The smooth contact creates less interference, less metal loss and wire deformation. The increased surface area of Flex-X can be seen in the comparison of the contact points of a standard 6x26WS and Flex-X as shown.

Flex X Picture.jpg
Flex-X_6_Specs

SPECIFICATIONS

Rope Diameter

in Inches

Approximate Weight

Per Foot in Pounds

Nominal Breaking

Strength in Tons

3/8

.32

8.8

7/16

.41

11.9

1/2

.55

15.3

9/16

.70

19.3

5/8

.86

22.7

3/4

1.25

32.4

7/8

1.67

43.8

1

2.18

56.9

1 1/8

2.71

71.5

1 1/4

3.43

87.9

1 3/8

4.25

106

1 1/2

5.01

125

1 5/8

5.27

146

1 3/4

6.12

169

1 7/8

7.02

192

2

7.98

217

2 1/8

9.01

244

2 1/4

10.10

272

2 3/8

11.25

302

2 1/2

12.47

332
